SPECIFICATIONS

【High Quality】The electric anchor winch features high efficiency 12 volt gear motors, running without ratcheting noise. Rugged All-Steel Gears make it more durable.

【Automatic Reset Circuit Breaker】will provide continuous protection until overcurrent is detected and corrected, then reset automatically

【Up/Down Switch】Power up and power down your anchor with an anti-reverse internal clutch to prevent free winding

【Easy To Operate】Allows you to automatically raise and lower the anchor with an easy-to-use button; provides simple, smooth operation and excellent holding power.

【Includes】Rugged All-Steel Gears; 100FT pre-wound braided anchor rope with 700LB; Automatic resetting circuit breaker; UP/DOWN switch; 14-gauge marine-grade battery wire, 17 ft long; Anchor safety chain; Assembly hardware.

Specifications

Maximum Anchor Capacity: 20-25 lbs.

Typical Boat Length: up to 20′

Speed up: 65 ft/min

Speed down: 70 ft/min

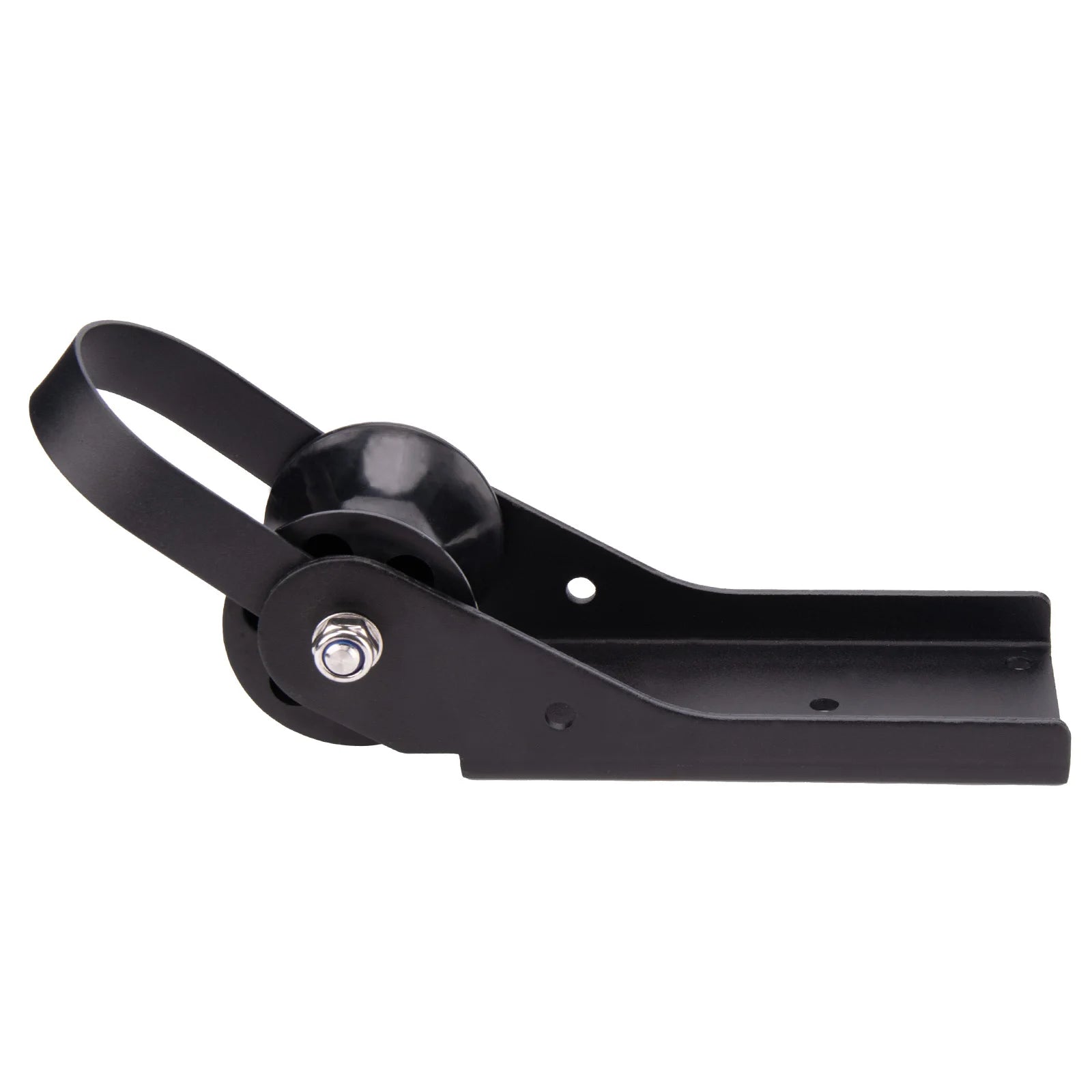

Separate roller davit included

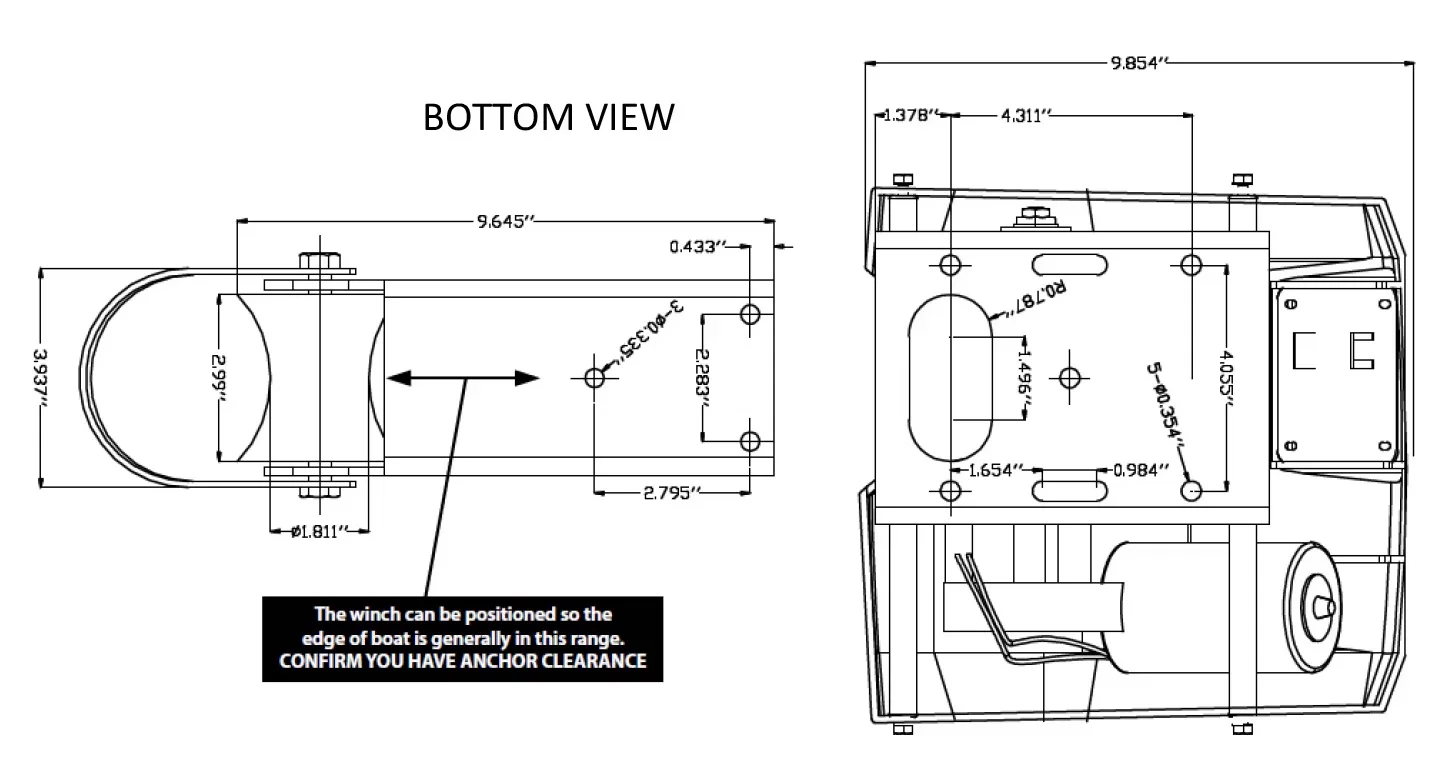

Winch Dimensions (LxWxH): 10″ x 9.75″ x 5.75″

Davit Dimensions (LxWxH): 9.5″ x 3.5″ x 5″

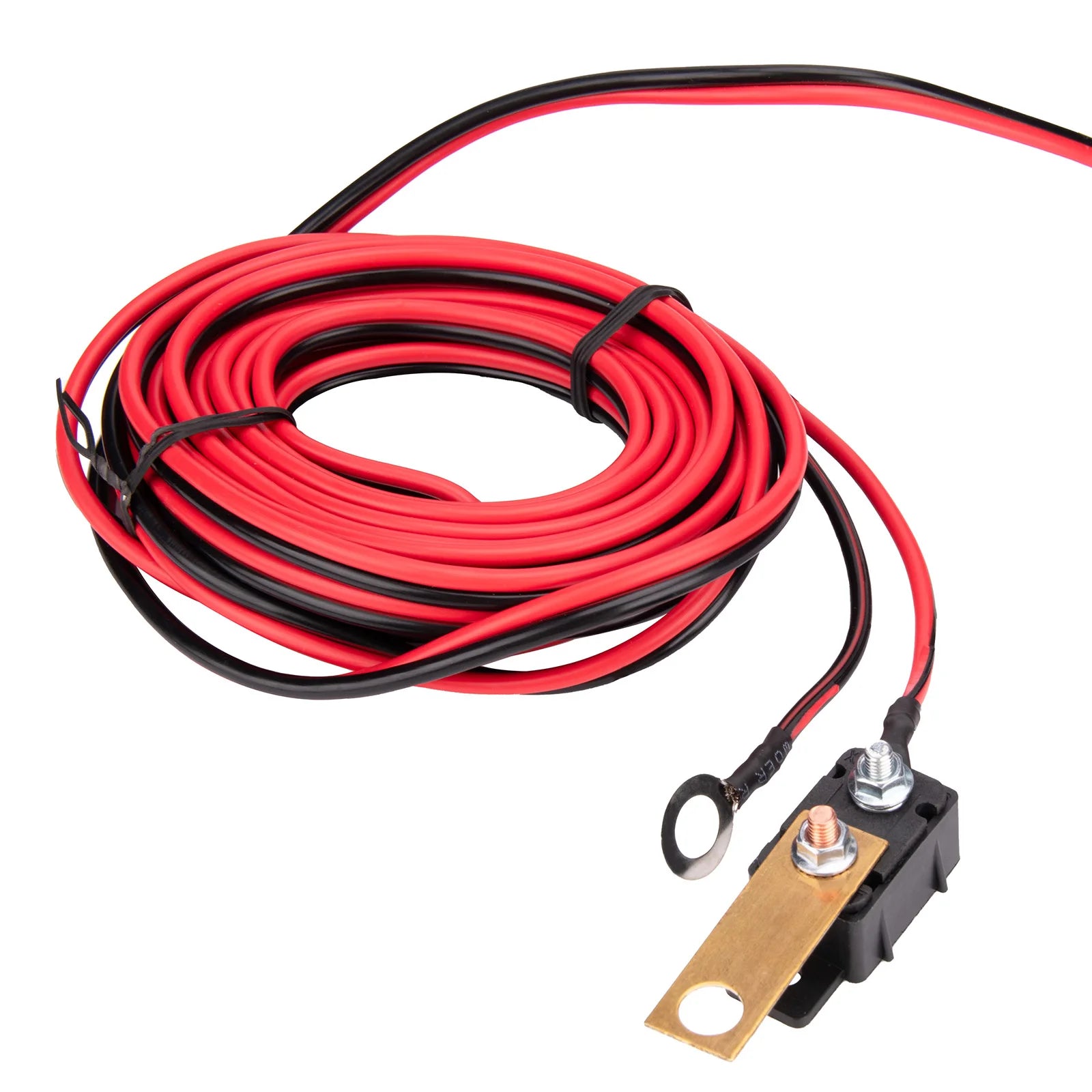

Includes 16' of 14 gauge marine-grade battery wire

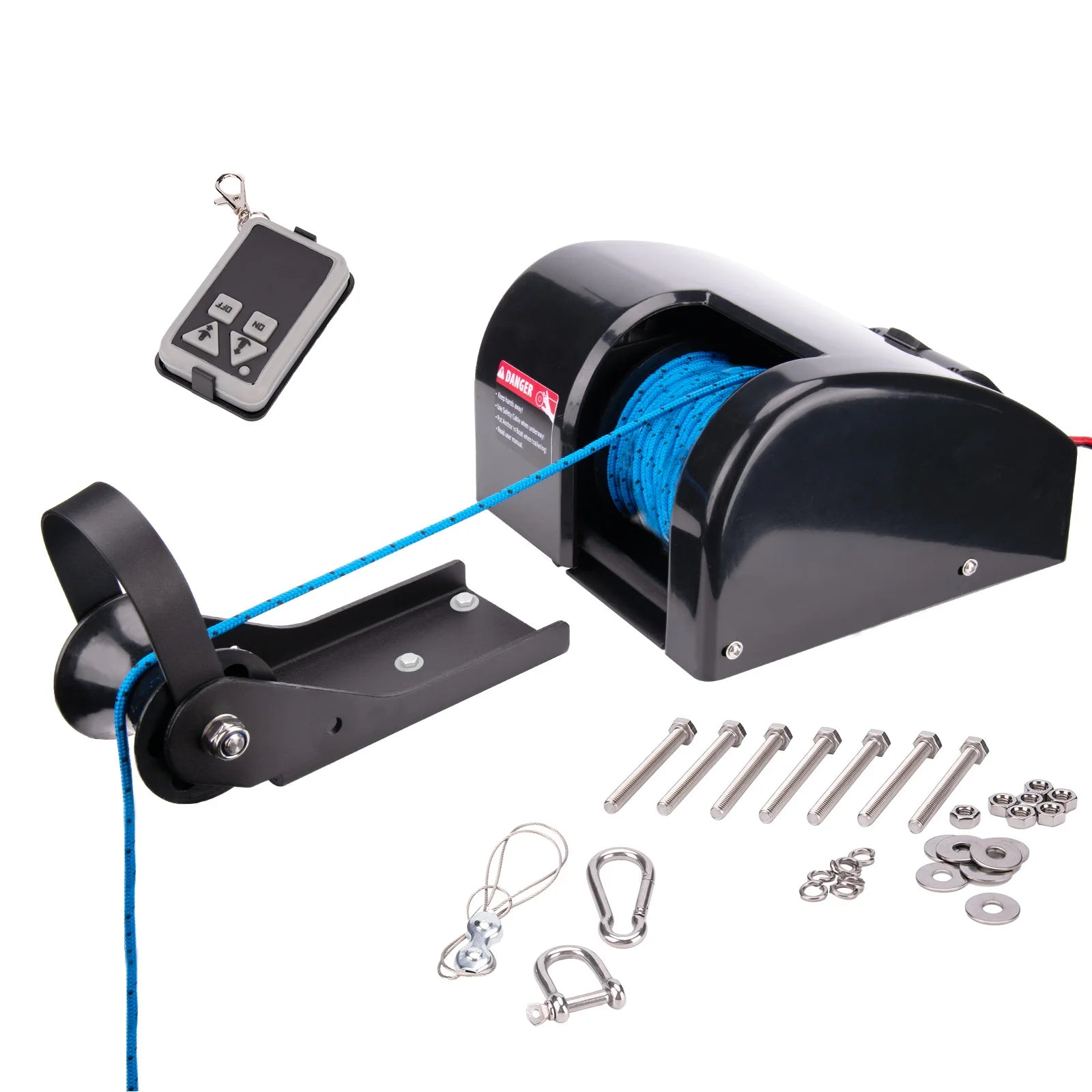

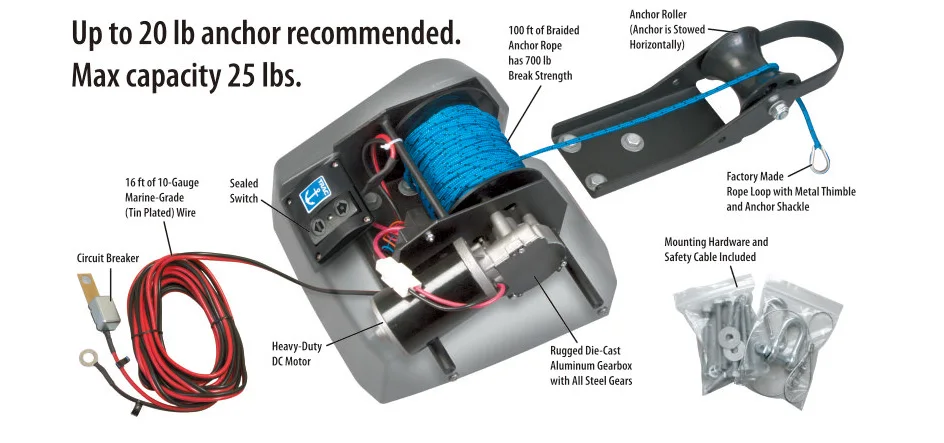

All Anchor Winch models include:

Rugged All-Steel Gears

100FT pre-wound braided anchor rope with 700LB. break strength

Automatic resetting circuit breaker

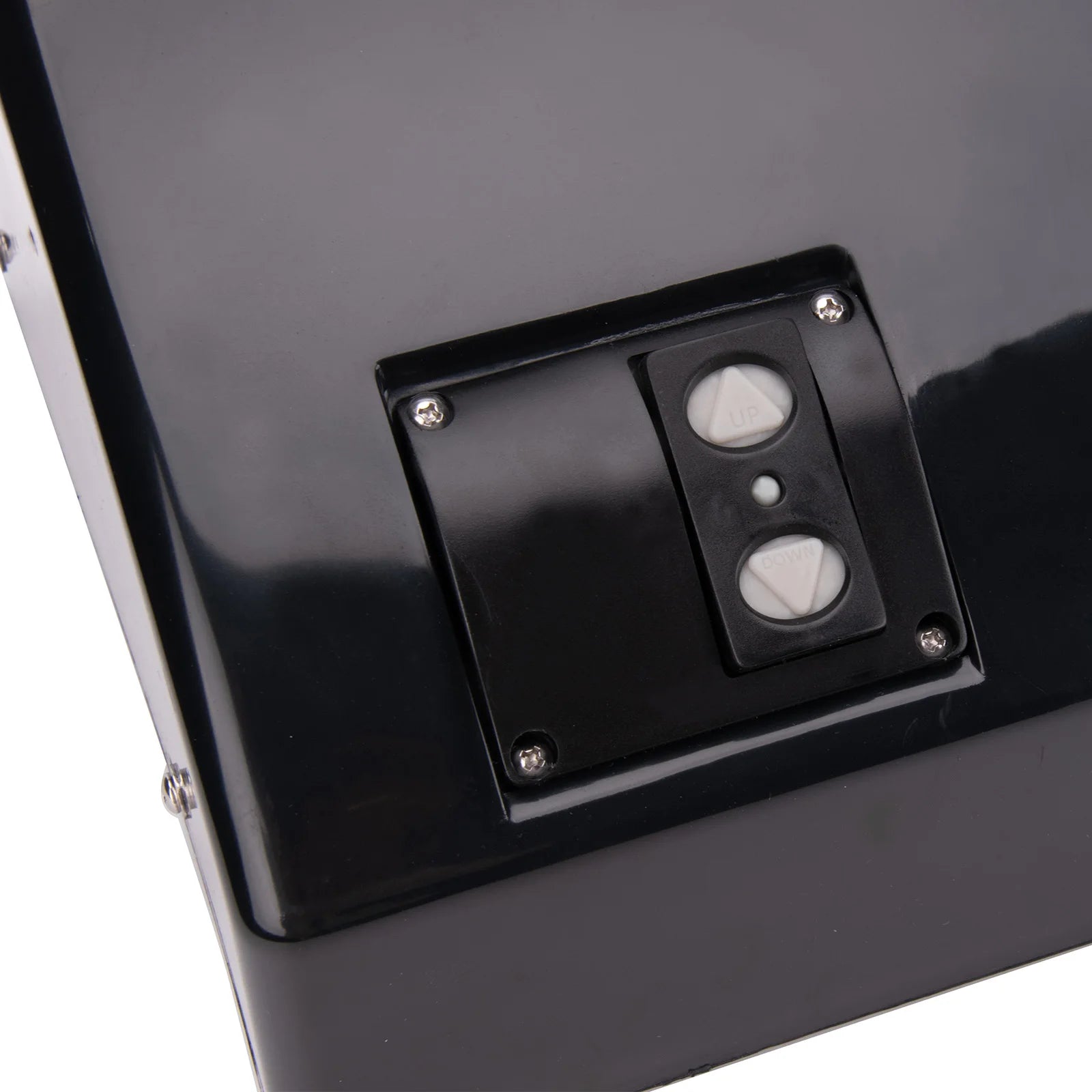

Sealed membrane UP/DOWN switch

10-gauge marine-grade battery wire, 17 ft long

Anchor safety chain

Assembly hardware and instructions
